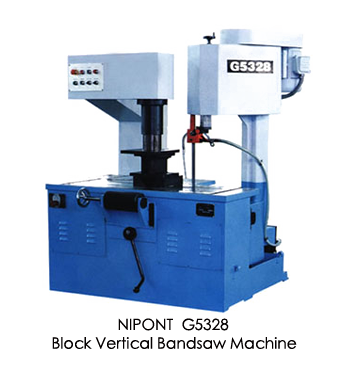

G5328 Block Vertical Bandsaw Machine
This machine is a new type block vertical bandsaw machine. It is suitable for cutting dies, steel plate and bar, etc. It is characterized by narrow cutting,material and energy saving, high precision, easy operation and high efficiency.
STRUCTURE CHARACTERISTICS:
1. The frame were straightly laid on level sideway and slant 30¡ã.
2. The hydraulic controlled frame moves along level direction .
3. Vertical clamp work piece by hydraulic system control.
4. The fixing and clamping of workpiece is easy.
Item | unit | specifications |
Max cutting thickness | mm | 280 |
Max cutting width | mm | 300 |
Min cutting width | mm | 10 |
Cutting length/one time | mm | 500 |
Max cutting capacity (dia) Length > 300 | mm | Dia 180 |
Max cutting capacity (dia) Length < 300 | mm | Dia 280 |
Blade speeds | m/mim | 25, 40, 64 |
Feed speed | stepless | |
Blade size | mm | 27x0.9x3350 |
Main motor power | kw | 2.2 |
Hydraulic motor power | kw | 0.75 |
Overll size ( LxWxH) | mm | 1320x1270x1715 |
G5335 BLOCK VERTICAL BANDSAW MACHINES
The medium-sized block vertical bandsaw machine is mainly used for cutting module & die stock and steel plate of medium thickness.It is characterized by narrow cut, energy and material saving, precise performance, simple operation, high efficiency.
Features
1.Infinitely variable blade speeds.
2.Feed speed controlled by DC motor with PWM Control system can be adjusted freely, and the performance of low feed speed is stable.
3.Hang-style operating chamber is stable and convenient .
Max Cutting height | 350mm |
Throat | 800mm |
Min Cutting width | 10mm |
Max Cutting length | 2000mm |
Blade speed infinitely variable | 22-105m/min |
Feed speeds | 3-94mm/min |
Rapid forward/ backward speed | 1.5m/min |
Blade size | 41x1.26x4570mm |
Table width( outer& Inner) | Outer 500mm Inner 800mm |
Table loading capacity (outer& Inner) | Outer 5000kg Inner4000kg |
Main motor power | 4kw |
Main power | 5kw |
Over all size | 4160x2100x2190mm |
Net weight | 5200kg |
G5435 200 Vertical Bandsaw Machine
G5435/200 semi-automatic vertical band saws are the new ones developed to the practical of the clients, they are capable of undertaking super heavyweight and unlimited length of materials, and they are fit to cut all kinds of ferrous and non-ferrous metals, especially those of ester mely hard moulds and materials and structures. Their design of the machine is scientific and highly automatic. They are reliable and stable and of easy operation and maintenance.
Max. Cutting Thickness | 350X2000mm |
Throat | 700mm |
Band width | 34mm |
Saw Blade Size | 1.1 x 34 x 4850 |
Blade speeds(inf. var.) | 20-100m/min |
Total Motor Power | 0.09, 1.1, 3/380V |
Net weight (Appr.) | 3800kgs |
